609JX2ZZC3/1K

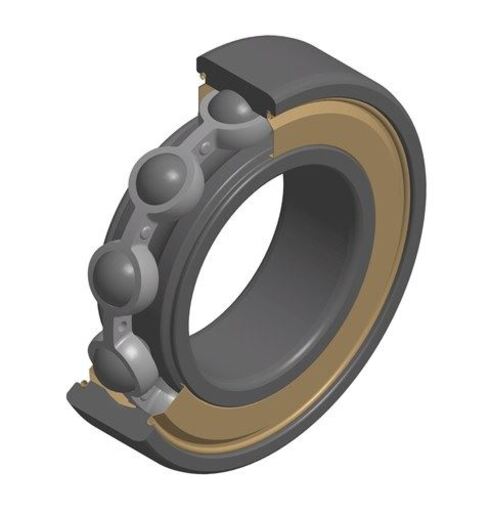

Deep groove ball bearing, radial contact, pressed steel cage, shields on both sides

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

Downloads

CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

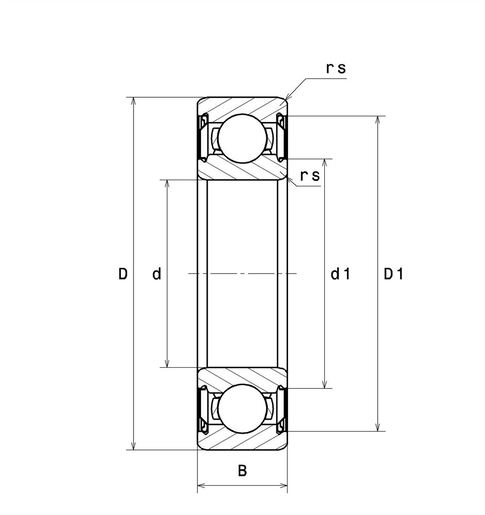

PRODUCT DIMENSIONS

Internal diameter (d) 9 mm
External diameter (D) 24 mm
Bearing/Inner ring width (B) 7 mm
Min fillet radius (rs) 0,3 mm
Radial clearance class C3
Mass 0,014 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Dynamic load (C) 3,75 kN
Static load (C0) 1,45 kN
Fatigue limit load (Cu) 0,095 kN
Coefficient f0 12.9
Nlim (grease) 31000 tr/min
Min operating temperature (Tmin) -55 °C
Max operating temperature (Tmax) 130 °C

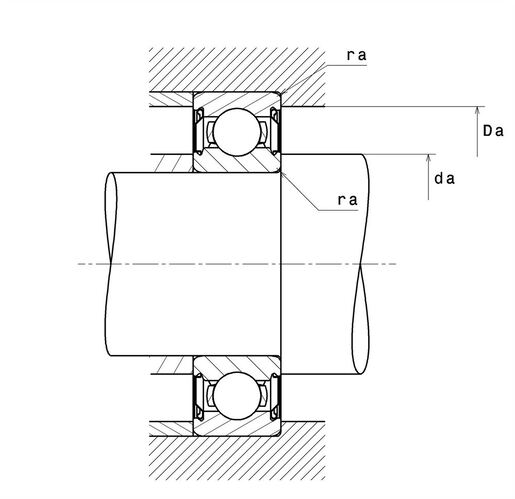

ABUTMENT

Min shoulder diameter IR (da min) 11 mm
Max shoulder diameter OR (Da max) 22 mm
Max shaft & housing fillet radius (ra max) 0,3 mm
Product classification image
Calcul factors image
