60/32C3 - NTN

60/32C3

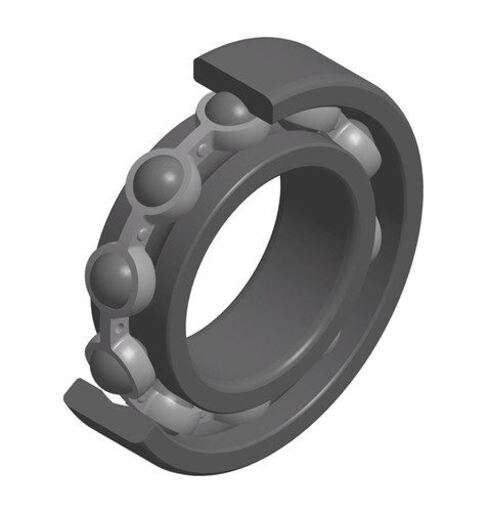

Deep groove ball bearing, radial contact, pressed steel cage, open

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

Downloads

CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

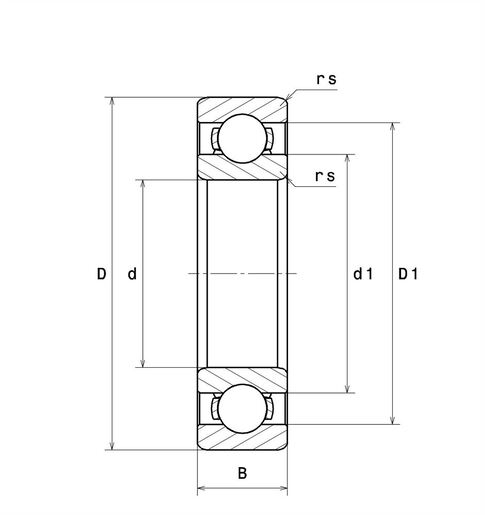

PRODUCT DIMENSIONS

Internal diameter d 32 mm
External diameter D 58 mm
Bearing/Inner ring width(B) 13 mm
Min fillet radius rs 1 mm
Radial clearance class C3
Mass 0,129 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Dynamic load, C 13,1 kN
Static load, C0 8,05 kN
Fatigue limit load, Cu 0,615 kN
Coefficient f0 15.4
Nlim (oil) 15000 tr/min
Nlim (grease) 12000 tr/min
Min operating temperature, Tmin -40 °C
Max operating temperature, Tmax 120 °C

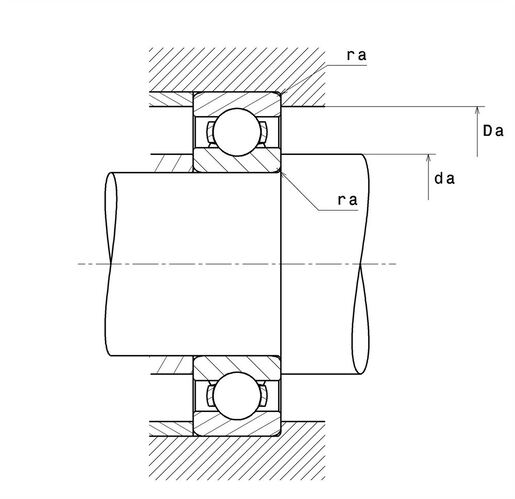

ABUTMENT

Min shoulder diameter IR da min 37 mm
Max shoulder diameter OR Da max 53 mm
Max shaft & housing fillet radius ra max 1 mm
Product classification image
Calcul factors image
