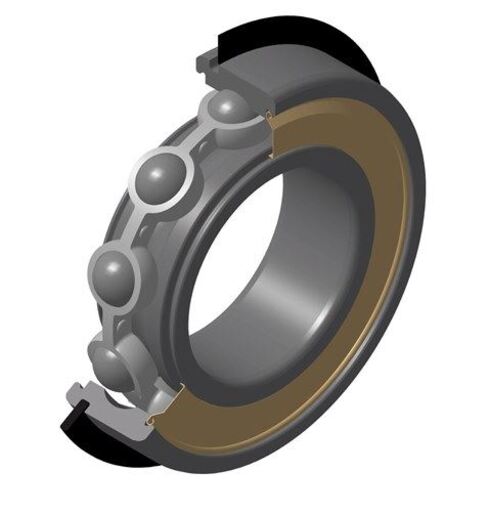

Deep groove ball bearing, radial contact, pressed steel cage, snap ring & groove on outer diameter, shield on one side
The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options : sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

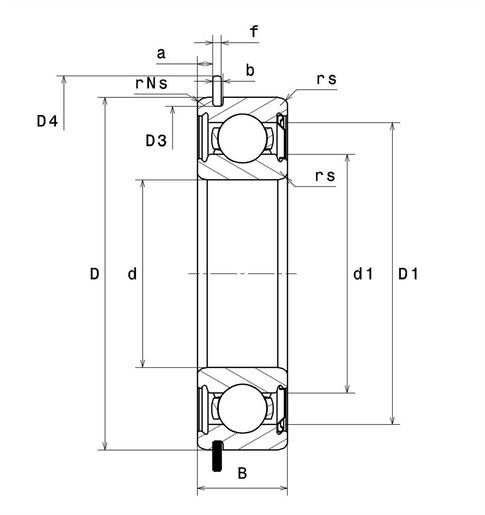

Log in To add this product to your basket Documentation Product information PRODUCT DEFINITION Brand SNR d - Internal diameter 50 mm D - External diameter 110 mm B - Bearing/Inner ring width 27 mm d1 - External diameter inner ring 64,7 mm D1 - Inner diameter outer ring 98 mm a min - Min position Groove 3,07 mm a max - Max position groove 3,28 mm Ca min - Mini segment position 5,43 mm Ca max - Max segment position 5,74 mm rs - Min fillet radius 2 mm rNs - Min fillet radius 0,5 mm D3 - Max bottom groove diameter 106,81 mm b min - Min groove width 2,7 mm b max - Max groove width 3 mm r0 max - Max bottom groove radius 0,6 mm D4 max - Max outer diameter of assembled stop ring 116,6 mm f - Stop ring thickness 2,41 mm Snap ring reference R110 Radial clearance class CN Mass 1,07 kg
PRODUCT PERFORMANCE C - Dynamic load 65,4 kN C0 - Static load 38,3 kN Cu - Fatigue limit load 1,74 kN f0 - Coefficient 13.2 N ref - Reference thermal speed 7700 tr/min N lim - Mechanical Limit Speed 10000 tr/min Tmin - Min operating temperature -40 °C Tmax - Max operating temperature 120 °C
BEARING FREQUENCIES BPFO - Over rolling frequency on outer ring (60 rpm) 3,071 Hz BPFI - Over rolling frequency on inner (60 rpm) 4,929 Hz BSF - Over rolling frequency on rolling element (60 rpm) 4,072 Hz BRF - Rotational frequency – rolling element (60 rpm) 2,036 Hz FTF - Rotational frequency - cage (60 rpm) 0,384 Hz

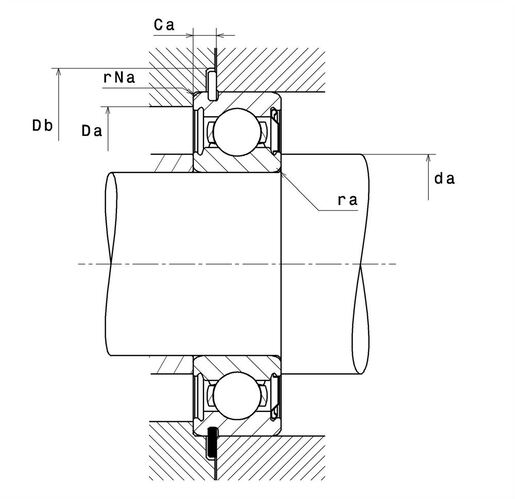

ABUTMENT da min - Min shoulder diameter IR 59 mm da max - Max shoulder diameter IR 64,7 mm Da max - Max shoulder diameter OR 101 mm ra max - Max shaft & housing fillet radius 2 mm rNa max - Max fillet radius on segment side 0,5 mm Db min - Min stop ring position diameter 118 mm
