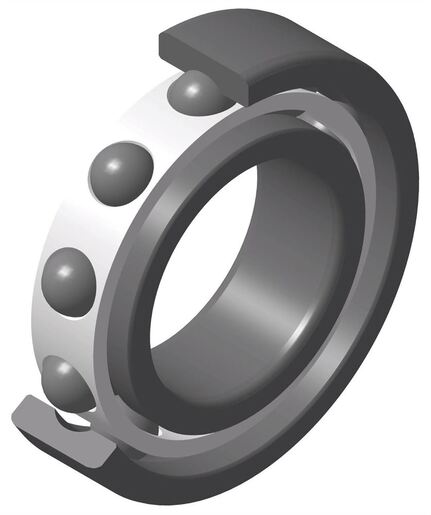

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.
Log in
To add this product to your basketDocumentation
Product information

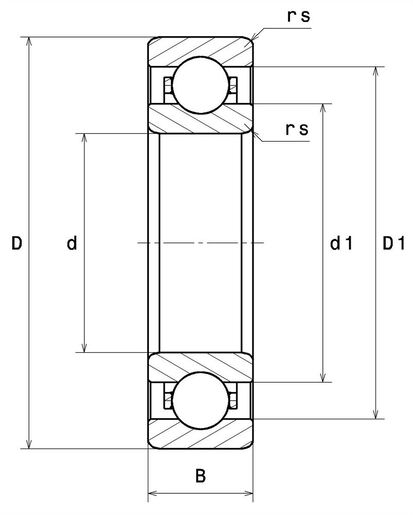

| PRODUCT DEFINITION | |
|---|---|
| Brand | NTN |
| d - Internal diameter | 400 mm |
| D - External diameter | 540 mm |
| B - Bearing/Inner ring width | 65 mm |
| d1 - External diameter inner ring | 445,2 mm |
| D1 - Inner diameter outer ring | 494,8 mm |
| rs - Min fillet radius | 4 mm |
| Radial clearance class | CN |
| Mass | 42,1 kg |
| PRODUCT PERFORMANCE | |
|---|---|
| C - Dynamic load | 370 kN |
| C0 - Static load | 535 kN |
| Cu - Fatigue limit load | 16,4 kN |
| f0 - Coefficient | 16.5 |
| N lim - Oil lubrication limit speed | 1200 tr/min |
| N lim - Grease lubrication limit speed | 990 tr/min |
| Tmin - Min operating temperature | -40 °C |
| Tmax - Max operating temperature | 120 °C |

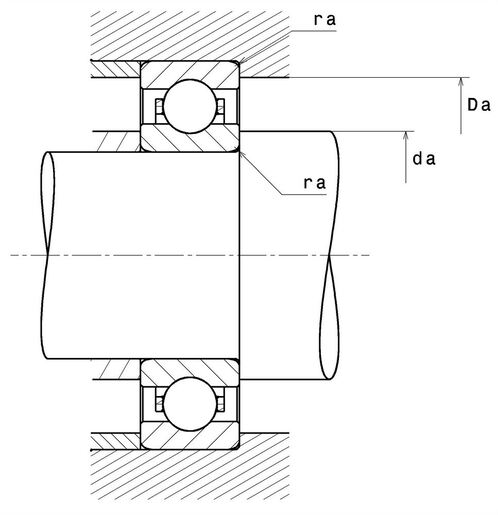

| ABUTMENT | |
|---|---|
| da min - Min shoulder diameter IR | 416 mm |
| da max - Max shoulder diameter IR | 445 mm |
| Da max - Max shoulder diameter OR | 524 mm |
| ra max - Max shaft & housing fillet radius | 3 mm |
