AH3140 - SNR

AH3140

Downloads

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

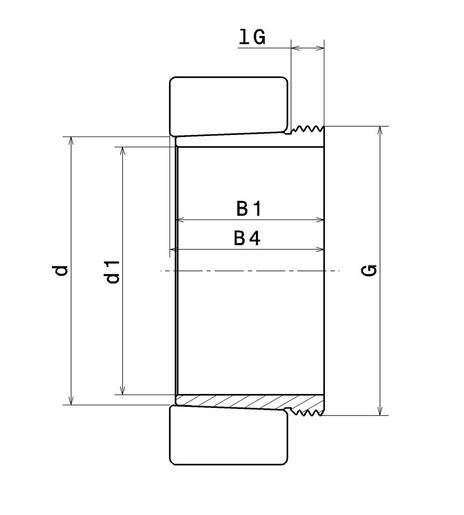

PRODUCT DIMENSIONS

Sleeve bore diameter (d1) 190 mm
Internal diameter (d) 200 mm
Sleeve length (B1) 134 mm
Overall dismantling length (B4) 140 mm
Thread designation (G) Tr220X4
Sleeve thread length (lG) 21 mm
Designation of tapping holes for oil injection (G1) -
Designation of the associated nut HM44T
Designation of the associated blocking device MB38
Designation of the nut KM38
Associated bearing 23140
Designation of the associated hydraulic nut HMV44 EBF
Bore Tapered 1:12
Mass 5,55 kg
Brand SNR
