Withdrawal sleeve

AHX2328G - SNR

AHX2328G

Documentation

Product information

PRODUCT DEFINITION
BrandSNR

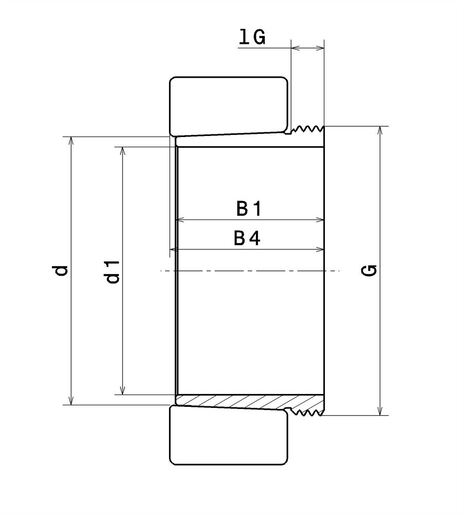

d1 - Sleeve bore diameter135 mm
d - Internal diameter140 mm
B1 - Sleeve length125 mm
B4 - Overall dismantling length130 mm
G - Thread designationM150X2
lG - Sleeve thread length20 mm
Mass2,25 kg
undefined
TECHNICAL CHARACTERISTICS
Associated bearing22328
BoreConique 1:12
CROSS SELLING
Designation of the associated nutKM30
Designation of the associated blocking deviceMB26
Designation of the nutKM26
Designation of the associated hydraulic nutHMV30 EBF
