AHX3230/140G - SNR

AHX3230/140G

Downloads

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

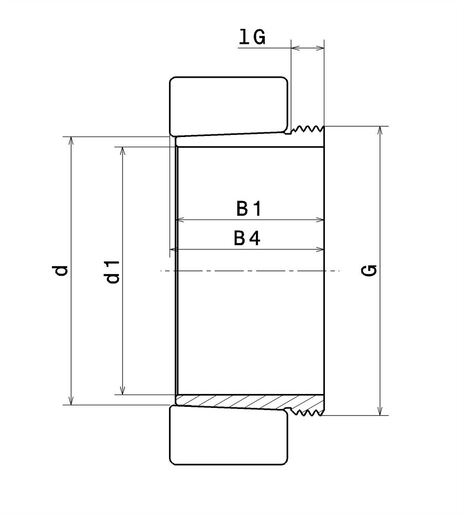

PRODUCT DIMENSIONS

Sleeve bore diameter (d1) 140 mm
Internal diameter (d) 150 mm
Sleeve length (B1) 114 mm
Overall dismantling length (B4) 119 mm
Thread designation (G) M160X3
Sleeve thread length (lG) 17 mm
Designation of the associated nut KM32
Designation of the associated blocking device MB28
Designation of the nut KM28
Associated bearing 23230
Designation of the associated hydraulic nut HMV32 EBF
Bore Tapered 1:12
Mass 3,034 kg
Brand SNR
