AS1124 - NTN

AS1124

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DEFINITION

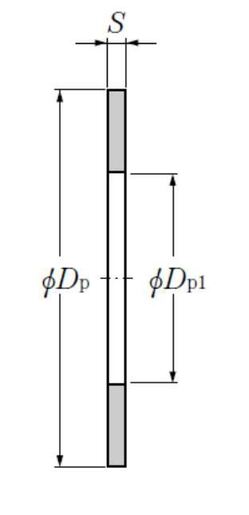

Dp - External diameter AS support washer 155 mm
Dp1 - Bore diameter AS support washer 120 mm
S - Support washer thickness AS 1 mm
Bearing ring (washer) AS mass 0,059 kg
Brand NTN

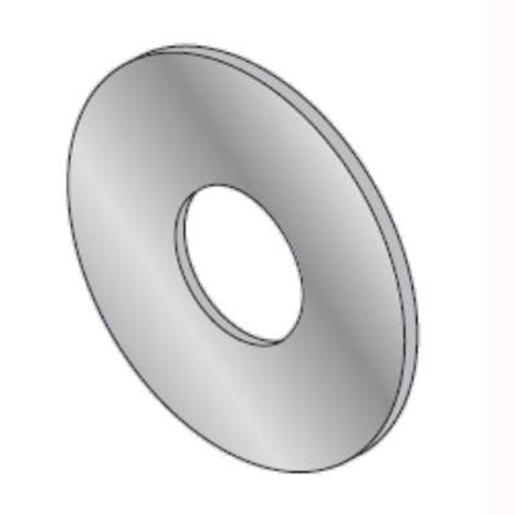

Product classification image

PRODUCT PERFORMANCE

Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C
