Product information
| PRODUCT DEFINITION | |
|---|---|
| Brand | NTN |

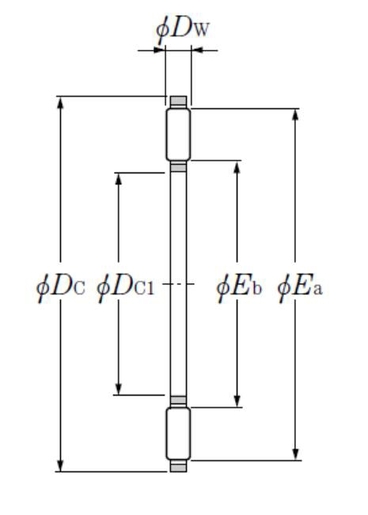

| Dc1 - Roller cage bore diameter | 80 mm |
| Dc - Roller cage outer diameter | 105 mm |
| Dw - Rolling element diameter | 4 mm |
| Bearing ring (washer) AS | AS1116 |
| Bearing ring (inner ring) WS | WS81116 |
| Bearing ring (outer ring) GS | GS81116 |
| Ea - Rollers reference outer diameter | 100,3 mm |
| Eb - Rollers reference inner diameter | 84,4 mm |
| Cage assembly mass | 0,063 kg |
| PRODUCT PERFORMANCE | |
|---|---|
| Ca - Dynamic axial load rating | 56,5 kN |
| C0a - Static axial load rating | 279 kN |
| Cua - Limit axial load rating | 34 kN |
| N lim - Grease lubrication limit speed | 650 tr/min |
| N lim - Oil lubrication limit speed | 2600 tr/min |
| Tmin - Min operating temperature | -20 °C |
| Tmax - Max operating temperature | 120 °C |
