AXK1124 - NTN

AXK1124

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DEFINITION

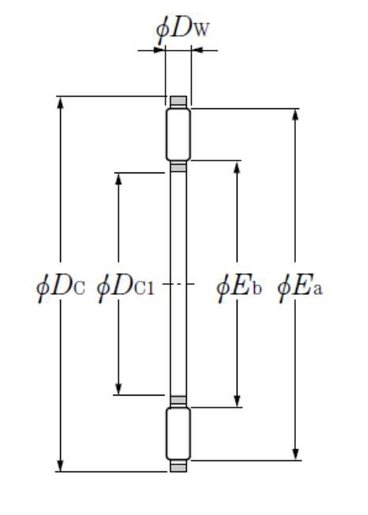

Dc1 - Roller cage bore diameter 120 mm
Dc - Roller cage outer diameter 155 mm
Dw - Rolling element diameter 4 mm
Bearing ring (washer) AS AS1124
Bearing ring (inner ring) WS WS81124
Bearing ring (outer ring) GS GS81124
Ea - Rollers reference outer diameter 149,4 mm
Eb - Rollers reference inner diameter 125,5 mm
Cage assembly mass 0,131 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Ca - Dynamic axial load rating 99 kN
C0a - Static axial load rating 650 kN
Cua - Limit axial load rating 72 kN
Nlim - Grease lubrication limit speed 430 tr/min
Nlim - Oil lubrication limit speed 1700 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C
