BBER50LAUU - SNR

BBER50LAUU

Flanged ball bushings are a useful addition to the standard ball bushings. The integrated flange design enables a more efficient arrangement of the housing or mounting holes. The flanged ball bushings are economical, because fewer components are required and altogether the installation is easier. The replacement of the ball bushings is easier.

Downloads

CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

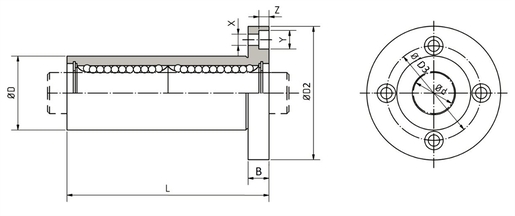

PRODUCT DIMENSIONS

Design type BBER
Ball bushings category Flange type ball bushings
Brand SNR
Standard ISO dimension
Number of seals 2
Material outer cylinder or steel segments 100Cr6
Material Cage St15
Grease filled no
Internal diameter (d) 50 mm
Internal diameter tolerance (d) 0,016/-0,004
External diameter (D) 75 mm
External diameter tolerance (D) 0/-0,022
Length (L) 192 mm
Length tolerance (L) 0,3/-0,3
B 13 mm
ØD2 112 mm
ØD3 94 mm
X 9 mm
Y 14 mm
Z 8,1 mm
Maximum eccentricity 20000 mm
Number of ball rows 6
Mass 2,82 kg
Product classification image

PRODUCT PERFORMANCE

Cmin 7701000 kN
Cmax 9857000 kN
C0min 15900000 kN
C0max 20352000 kN
Permissible static Moment My 396 N/m
Min operating temperature (Tmin) -20 °C
Max operating temperature (Tmax) 110 °C
