Driveshaft Kits

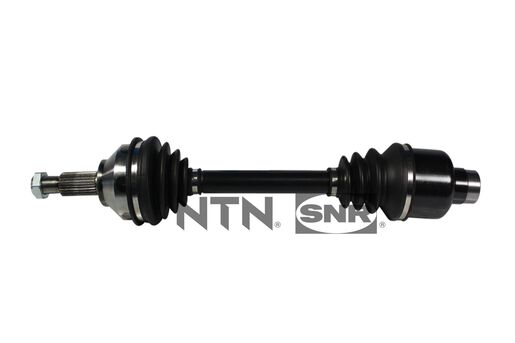

DK52.002 - SNR

DK52.002

Documentation

Product information

CHARACTERISTICS
Fitting positionTrain avant
Weight7,179 kg
External or internal thread definitionM22x1,5
Seal diameter565 mm
number of external splines on the wheel side27
Diameter ball joint on the side of the wheel107 mm
Length 1579 mm
Diameter of the ball joint, gearbox side96 mm
Number of external splines on the gearbox side35
New partOui

OE Equivalents

ManufacturerReferenceFord1132508Ford1209061Ford1214374Ford1312785Ford1314258Ford1328335Ford1328336Ford1358232Ford1358233Ford1358234Ford1366430Ford1366563Ford1447467Ford1447470Ford1447471Ford1447472Ford1600648Ford1600649Ford1S713B436ACFord1S7W3B436DAFord1S7W3B436EBFord2S713B436AAFord2S713B436ABFord2S713B436ACFord2S713B436BAFord2S713B436BBFord2S713B436DAFord2S713B436DBFord2S713B436DCFord2S7W3B436AAFord2S7W3B436BAFord4106377Ford4132634Ford4372691Ford4398068Ford4398072FordRM1S7J3B436EBFordRM2S713B436BAFordRM2S713B436BBFordRM2S713B436BXFordRM2S713B436DAFordRM2S713B436DBFordRM2S713B436DXFordVP2S7W3B436DA

Automotive Compatibility

BrandModelGenerationDatePositionLocationFORD (CHANGAN)MONDEOMONDEO => Front-FordMondeoMONDEO II09/2000 => 05/2007FrontRightFordMONDEO IIIMONDEO III09/2000 => Train avantRightFordMondeoMondeo09/2000 => 02/2007FrontRight
