DLG 318 AE

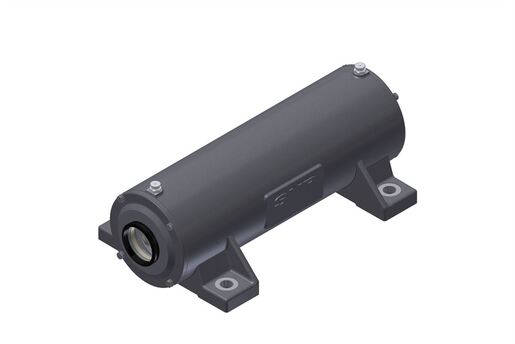

Three bearing housing, made of grey cast, for grease lubrication

Multiple bearing housings, that allow the usage of different bearing combinations.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - 2x 7318 BG - V-110S - NU 318 EG15 C3 - Fl 24
PLEASE LOGIN to add products to your basket
Contact us
Specs

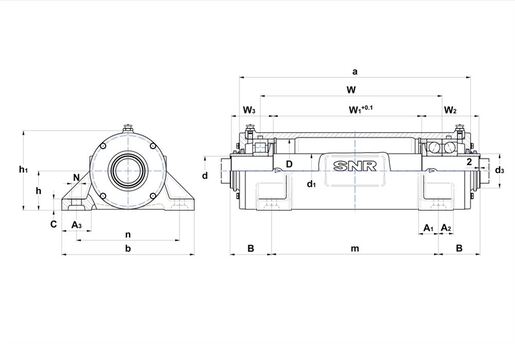

PRODUCT DEFINITION

d - Shaft diameter 90 mm
d1 - Shaft diameter between bearings 105 mm
d3 - Outer diameter sleeve 110 mm
a - Housing length 599 mm
b - Housing foot width 350 mm
c - Housing foot height 30 mm
h - Bearing center height 112 mm
h1 - Housing height 230 mm
m - Mounting hole/punches distance (length) 460 mm
n - Mounting hole distance (width) 290 mm
N - Mounting hole diameter 20 mm
B - Distance mounting hole to shaft step 87 mm
W - Bearing distance 474 mm
W1 - Central shaft length 387,5 mm
W2 - Right shaft end length 144,5 mm
W3 - Left shaft end length 101,5 mm
A1 - Foot width (for ZLG, bore inner side width) 55 mm
A2 - ZLG foot width beside bore outer side 45 mm
A3 - ZLG foot width 70 mm
D - Bearing seat diameter 190 mm
Mass 71 kg
Material of Housing grey cast
Brand SNR
Product classification image

BOLTS

G - Fixing bolts M16
Recommended torque fixing bolts 150 N-m
Cover bolts M8x25
Recommended torque cover bolts 17 N-m
