DLG 320 AF

Three bearing housing, made of grey cast, for grease lubrication

Multiple bearing housings, that allow the usage of different bearing combinations.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - 6320C3 - 2x 7320 BG - ASG 6320 - V-120S - Fl 27
PLEASE LOGIN to add products to your basket
Contact us
Specs

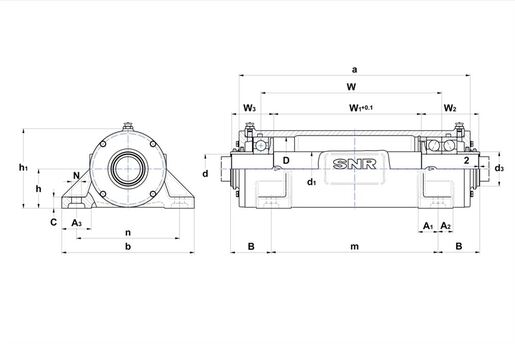

PRODUCT DEFINITION

d - Shaft diameter 100 mm
d1 - Shaft diameter between bearings 115 mm
d3 - Outer diameter sleeve 120 mm
a - Housing length 657 mm
b - Housing foot width 400 mm
c - Housing foot height 40 mm
h - Bearing center height 130 mm
h1 - Housing height 264 mm
m - Mounting hole/punches distance (length) 500 mm
n - Mounting hole distance (width) 320 mm
N - Mounting hole diameter 24 mm
B - Distance mounting hole to shaft step 95,5 mm
W - Bearing distance 522 mm
W1 - Central shaft length 428,5 mm
W2 - Right shaft end length 153 mm
W3 - Left shaft end length 109,5 mm
A1 - Foot width (for ZLG, bore inner side width) 60 mm
A2 - ZLG foot width beside bore outer side 50 mm
A3 - ZLG foot width 80 mm
D - Bearing seat diameter 215 mm
Mass 93 kg
Material of Housing grey cast
Brand SNR
Product classification image

BOLTS

G - Fixing bolts M20
Recommended torque fixing bolts 290 N-m
Cover bolts M8x25
Recommended torque cover bolts 17 N-m
