ES207G2T20 - SNR

ES207G2T20

Spherical outer diameter, fixing by eccentric locking collar, labyrinth seal, for high-temp. applications

Bearing inserts for bearing units, are proposed with different locking devices for easy assembly.

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

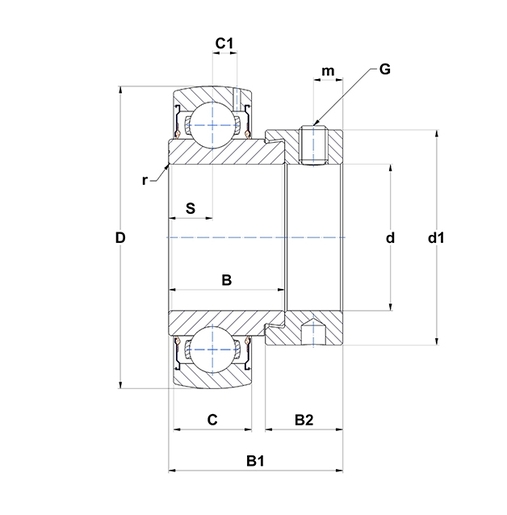

PRODUCT DEFINITION

B - Width of Inner Ring 25,4 mm
B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) 38,9 mm
B2 - Width of eccent. Lock. collar/nut+washer of adapter sleeve 17,5 mm
C - Width of Outer Ring 17 mm
C1 - Distance center of OR to center of lubrication zone 5,7 mm
d - Shaft diameter 35 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve 51,1 mm
D - Outer diameter of OR 72 mm
G - Set screw size M8x1
m - Distance to set screw 6,5 mm
r - Radius Inner Ring 1.1
S - Dist. cent. of raceway to face IR on side opp. lock. device 9,5 mm
SW - Wrench size 4 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 25,7 kN
C0 - Static load rating 15,2 kN
Operating temperature min. -20 °C
Operating temperature max. 200 °C

OTHER FEATURES

Mass 0,5 kg
Recommended tightening torque for set screw 11,5 N-m
