Grey cast housing, radial insert ball bearing with eccentric locking collar, single lip seal
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.
Technical datasheet
Specs

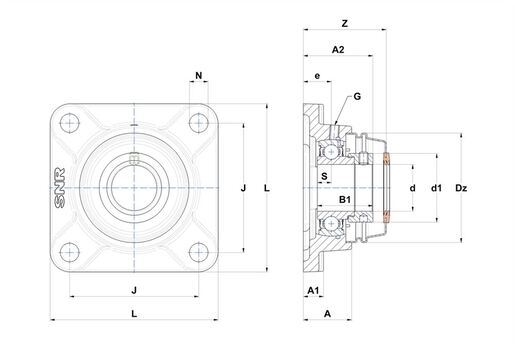

PRODUCT DIMENSIONS | |
|---|---|
| Housing height (A) | 38 mm |
| Housing foot height / flange height (A1) | 16 mm |
| Total height (Housing + Insert) from mouting surface (A2) | 54,7 mm |
| Width of IR (B) | 30,2 mm |
| Overall width IR incl. eccent. locking collar/adapt. sleeve(B1) | 43,7 mm |
| Shaft dia (d) | 45 mm |
| Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) | 62 mm |
| Outer dia of cover (Dz) | 95 mm |
| Distance mounting surface - bearing center (e) | 22 mm |
| Grease fitting (G) | M6x1 |
| Mounting hole distance (J) | 105 mm |
| Housing width / dia (L) | 137 mm |
| Mounting hole dimension (N) | 16 mm |
| Dist. cent. of raceway to face IR on side opp. lock. device (S) | 11 mm |
| width over covers | 63,4 mm |
| Brand | SNR |
PRODUCT PERFORMANCE | |
|---|---|
| Dynamic load rating (C) | 31,85 kN |
| Static load rating (C0) | 20,8 kN |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 100 °C |
OTHER FEATURES | |
|---|---|
| Mass | 2,188 kg |
| Recommended tightening torque for set screw [Nm] | 11,5 N-m |
