ESFD206-18T20 - SNR

ESFD206-18T20

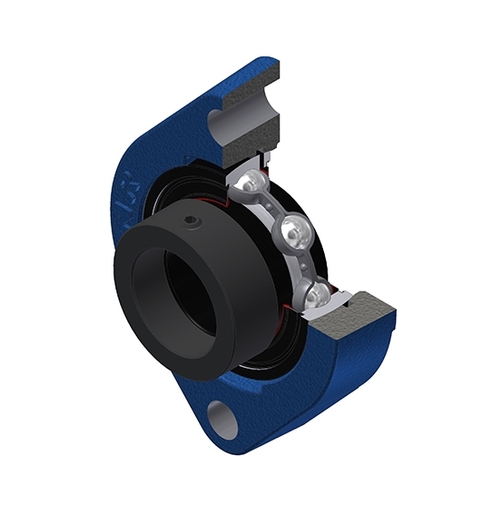

Grey cast housing, radial insert ball bearing with eccentric locking collar, single lip seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - ES206-18G2T20 - FD206
PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DIMENSIONS

Housing height (A) 20,5 mm
Total height (Housing + Insert) from mouting surface (A2) 38,1 mm
Width of IR (B) 23,8 mm
Overall width IR incl. eccent. locking collar/adapt. sleeve(B1) 35,7 mm
Shaft dia (d) 28,575 mm
Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) 44,1 mm
Distance mounting surface - bearing center (e) 11,4 mm
Grease fitting (G) R1/8"
Housing length, width or diameter (H) 112,5 mm
Mounting hole distance (J) 90,5 mm
Housing width / dia (L) 84 mm
Mounting hole dimension (N) 11 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 9 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 19,5 kN
Static load rating (C0) 11,2 kN
Operating temperature min. -20 °C
Operating temperature max. 200 °C

OTHER FEATURES

Mass 0,75 kg
Recommended tightening torque for set screw [Nm] 8 N-m
