ESFL201T04 - SNR

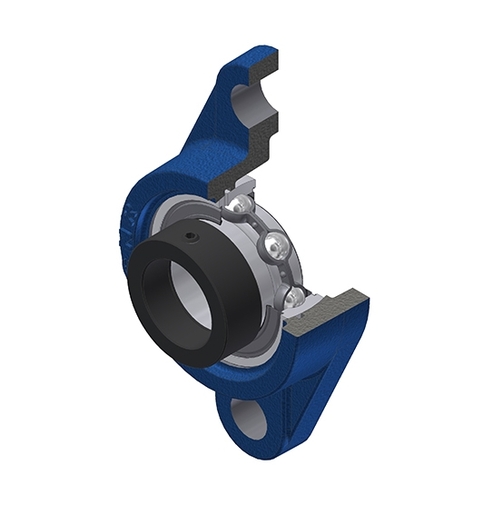

Grey cast housing, radial insert ball bearing with eccentric locking collar, single lip seal, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.


3D file

Technical datasheet

KitThis kit contains the following reference(s)- ES201G2T04- FL203
PLEASE LOGIN to add products to your basket
Contact us

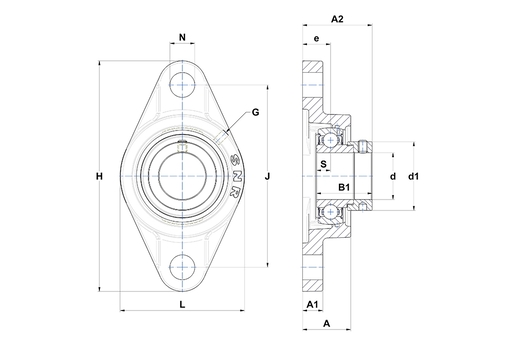

A - Housing height25,5 mm
A1 - Housing foot height / flange height11 mm
A2 - Total height from mounting surface37,1 mm
B - Width of Inner Ring19,1 mm
B1 - Overall width Inner Ring28,6 mm
d - Shaft diameter12 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve27,2 mm
e - Distance mounting surface to bearing center15 mm
G - Grease fittingM6x1
H - Housing length, width or diameter99 mm
J - Mounting holes distance76,5 mm
L - Housing width / diameter57 mm
N - Mounting hole dimension12 mm
S - Distance front side/bearing centre6,5 mm
Product classification image
C - Dynamic load rating9,55 kN
C0 - Static load rating4,78 kN
Operating temperature min.-40 °C
Operating temperature max.100 °C
Mass0,4 kg
Recommended tightening torque for set screw5,5 N-m
