ESP210T04COE - SNR

ESP210T04COE

Grey cast housing, radial insert ball bearing with eccentric locking collar, single lip seal, for low-temp. applications.

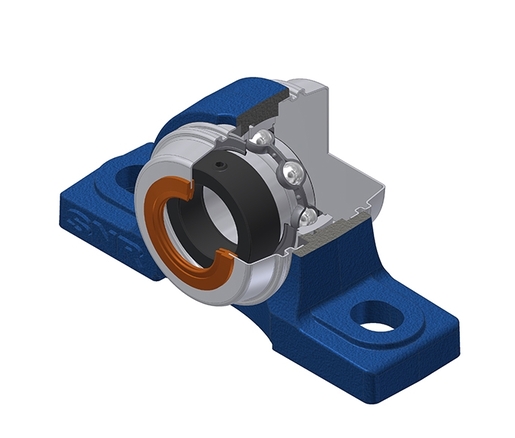

In the figure, bearing units are presented with one open and one closed cover. The product you have chosen is equipped with two open covers.

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - ES210G2T04 - SCOE210-50 - P210N
PLEASE LOGIN to add products to your basket
Contact us

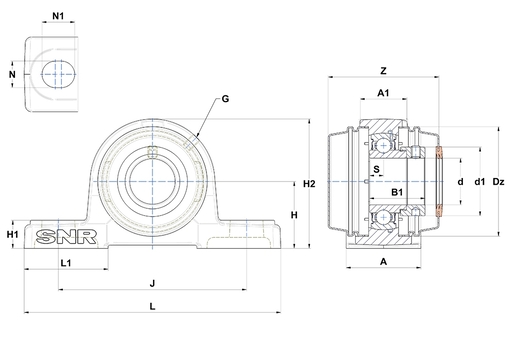

PRODUCT DEFINITION
BrandSNR
A - Housing width60 mm
A1 - Housing top width39 mm
B - Width of Inner Ring30,2 mm
d - Shaft diameter50 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve67,2 mm
Dz - Outer diameter of cover100 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.57,2 mm
H1 - Housing foot height22 mm
H2 - Housing height114 mm
J - Mounting holes distance159 mm
L - Housing length206 mm
L1 - Housing foot length65 mm
N - Mounting hole dimension20 mm
N1 - Mounting hole length25 mm
S - Distance front side/bearing centre11 mm
Z - Width over covers91,4 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating35,1 kN
C0 - Static load rating23,2 kN
Operating temperature min.-40 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass3,044 kg
Recommended tightening torque for set screw11,5 N-m
