Bearing units

ESPLE210-30 - SNR

ESPLE210-30

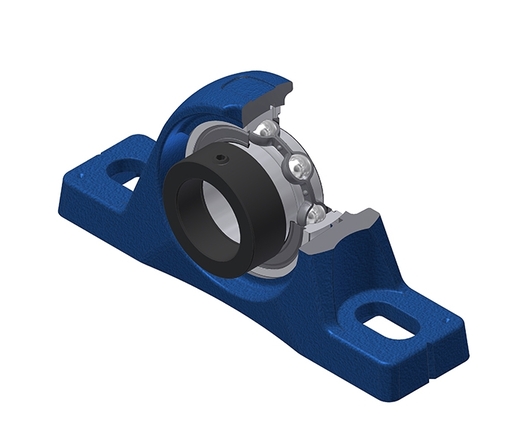

Grey cast housing, radial insert ball bearing with eccentric locking collar, single lip seal

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

This kit contains the following reference(s)

Documentation

Product information

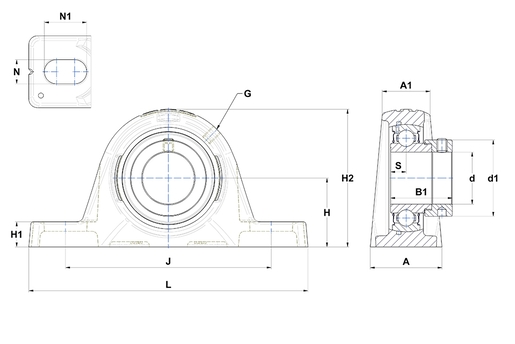

PRODUCT DEFINITION
BrandSNR
A - Housing width55 mm
A1 - Housing top width36 mm
B - Width of Inner Ring30,2 mm
d - Shaft diameter47,625 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve67,2 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.55,6 mm
H1 - Housing foot height19,3 mm
H2 - Housing height114 mm
J - Mounting holes distance164 mm
L - Housing length214 mm
N - Mounting hole dimension14 mm
N1 - Mounting hole length27 mm
S - Distance front side/bearing centre11 mm
undefined
PRODUCT PERFORMANCE
C - Dynamic load rating35,1 kN
C0 - Static load rating23,2 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass2,95 kg
Recommended tightening torque for set screw8 N-m
