ESPLE212T20 - SNR

ESPLE212T20

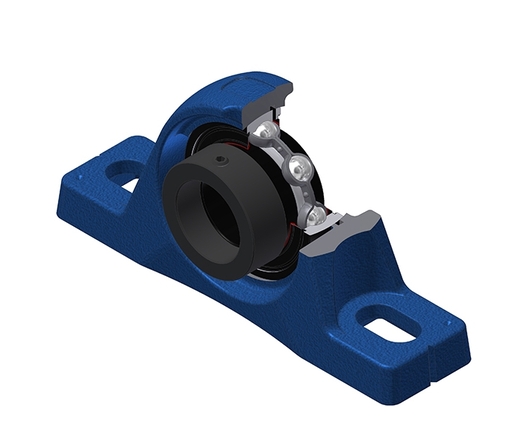

Grey cast housing, radial insert ball bearing with eccentric locking collar, single lip seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

3D file

Technical datasheet

KitThis kit contains the following reference(s) - ES212G2T20 - PLE212
PLEASE LOGIN to add products to your basket
Contact us

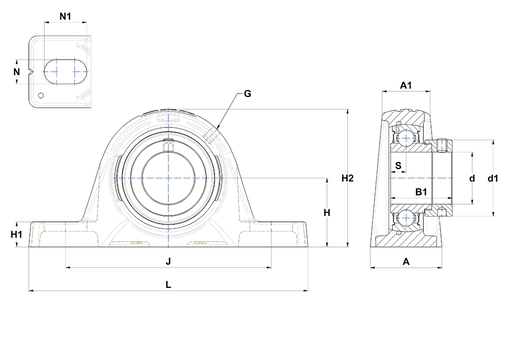

PRODUCT DEFINITION
BrandSNR
A - Housing width79,4 mm
A1 - Housing top width50,8 mm
B - Width of Inner Ring33,4 mm
d - Shaft diameter60 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve82 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.68,3 mm
H1 - Housing foot height28,6 mm
H2 - Housing height138,1 mm
J - Mounting holes distance193,7 mm
L - Housing length245 mm
N - Mounting hole dimension18 mm
N1 - Mounting hole length29,1 mm
S - Distance front side/bearing centre12 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating52,5 kN
C0 - Static load rating32,8 kN
Operating temperature min.-20 °C
Operating temperature max.200 °C
OTHER FEATURES
Mass5,5 kg
Recommended tightening torque for set screw22 N-m
