ESPP204-12T04 - SNR

ESPP204-12T04

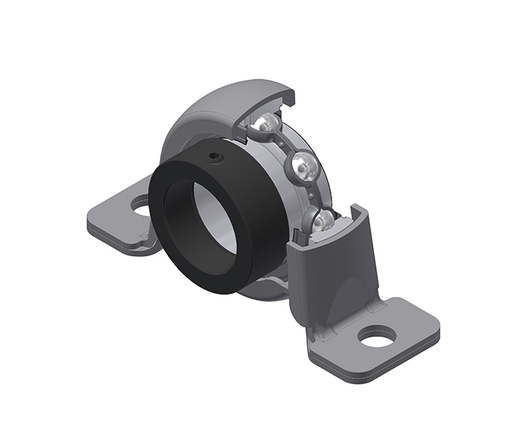

Sheet metal housing, radial insert ball bearing with eccentric locking collar, single lip seal, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - ES204-12G2T04 - PP204
PLEASE LOGIN to add products to your basket
Contact us
Specs

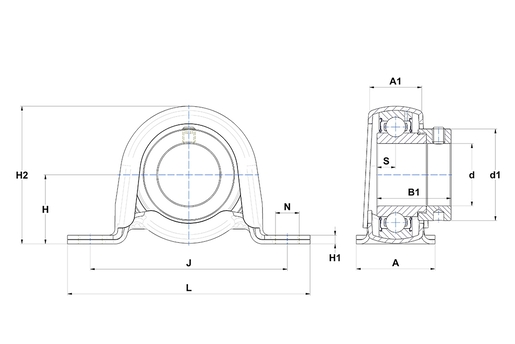

PRODUCT DIMENSIONS

Housing width (A) 31,7 mm
Housing top width (A1) 21,6 mm
Width of IR (B) 21,4 mm
Shaft dia (d) 19,05 mm
Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) 32,4 mm
Distance mounting base to centerline spheric. seating diam. (H) 25,4 mm
Housing foot height (H1) 2,4 mm
Housing height (H2) 49,9 mm
Mounting hole distance (J) 76 mm
Housing length (L) 98,4 mm
Mounting hole dimension (N) 9 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 7,5 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 12,8 kN
Static load rating (C0) 6,65 kN
Operating temperature min. -40 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 0,25 kg
Recommended tightening torque for set screw [Nm] 3,7 N-m
