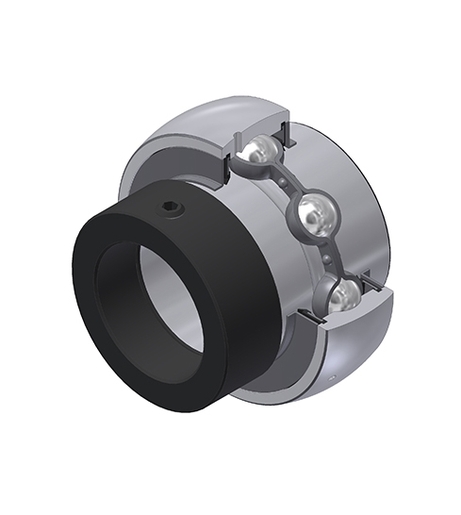

Spherical outer diameter, fixing by eccentric locking collar, seal with slinger
Bearing inserts for bearing units, are proposed with different locking devices for easy assembly.
3D file
Technical datasheet
Specs
PRODUCT DEFINITION | |
|---|---|
| B - Width of Inner Ring | 61,9 mm |
| B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) | 79,4 mm |
| B2 - Width of eccent. Lock. collar/nut+washer of adapter sleeve | 23,9 mm |
| C - Width of Outer Ring | 36 mm |
| C1 - Distance center of OR to center of lubrication zone | 11,3 mm |
| d - Shaft diameter | 60 mm |
| d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve | 89 mm |
| D - Outer diameter of OR | 130 mm |
| G - Set screw size | M10x1,25 |
| m - Distance to set screw | 9 mm |
| r - Radius Inner Ring | 2 |
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 31 mm |
| SW - Wrench size | 5 mm |
| Brand | SNR |
PRODUCT PERFORMANCE | |
|---|---|
| C - Dynamic load rating | 81,6 kN |
| C0 - Static load rating | 51,8 kN |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 100 °C |
OTHER FEATURES | |
|---|---|
| Mass | 2,89 kg |
| Recommended tightening torque for set screw | 22 N-m |
