Spherical outer diameter, fixing by eccentric locking collar, seal with slinger, for low-temp. applications
Bearing inserts for bearing units, are proposed with different locking devices for easy assembly.
3D file
Technical datasheet

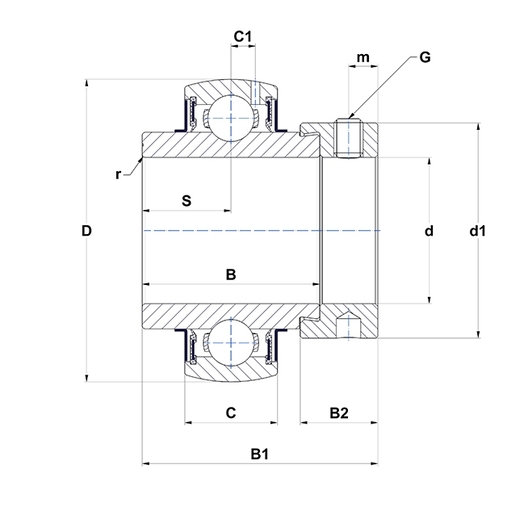

| PRODUCT DEFINITION | |
|---|---|
| Brand | SNR |
| B - Width of Inner Ring | 61,9 mm |
| B1 - Overall width Inner Ring | 79,4 mm |
| B2 - Width of eccentric locking collar/nut | 23,9 mm |
| C - Width of Outer Ring | 36 mm |
| C1 - Distance center of OR to center of lubrication zone | 11,3 mm |
| d - Shaft diameter | 60 mm |
| d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve | 89 mm |
| D - Outer diameter of OR | 130 mm |
| G - Set screw size | M10x1,25 |
| m - Distance to set screw | 9 mm |
| r - Radius Inner Ring | 2 |
| S - Distance front side/bearing centre | 31 mm |
| f0 - Factor | 13.2 |
| SW - Wrench size | 5 mm |
| PRODUCT PERFORMANCE | |
|---|---|
| C - Dynamic load rating | 81,6 kN |
| C0 - Static load rating | 51,8 kN |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 100 °C |
| OTHER FEATURES | |
|---|---|
| Mass | 2,89 kg |
| Recommended tightening torque for set screw | 22 N-m |
| BEARING FREQUENCIES | |
|---|---|
| BPFO - Characteristic outer ring frequency (60 rpm) | 3,064 Hz |
| BPFI - Characteristic inner ring frequency (60 rpm) | 4,936 Hz |
| FTF - Characteristic cage frequency (60 rpm) | 0,383 Hz |
| BSF - Characteristic rolling element frequency (60 rpm) | 4,041 Hz |
