EX313-40G2T04 - SNR

EX313-40G2T04

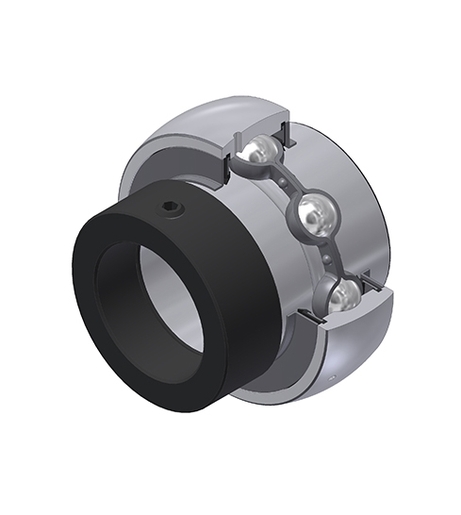

Spherical outer diameter, fixing by eccentric locking collar, seal with slinger, for low-temp. applications

Bearing inserts for bearing units, are proposed with different locking devices for easy assembly.

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

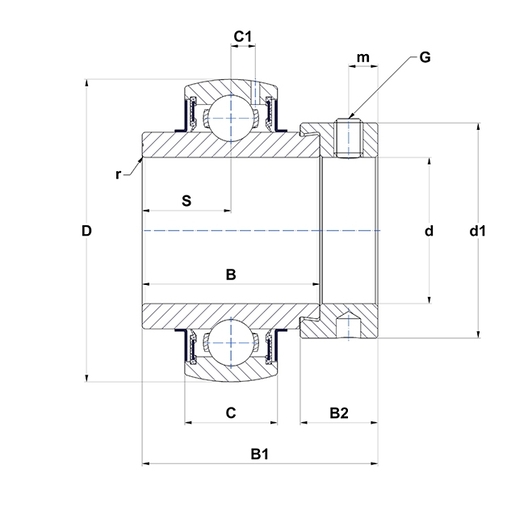

PRODUCT DEFINITION

B - Width of Inner Ring 65,1 mm
B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) 85,7 mm
B2 - Width of eccent. Lock. collar/nut+washer of adapter sleeve 27 mm
C - Width of Outer Ring 38 mm
C1 - Distance center of OR to center of lubrication zone 12,1 mm
d - Shaft diameter 63,5 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve 97 mm
D - Outer diameter of OR 140 mm
G - Set screw size 7/16-20UNF
m - Distance to set screw 11,5 mm
r - Radius Inner Ring 2
S - Dist. cent. of raceway to face IR on side opp. lock. device 32,5 mm
SW - Wrench size 5,556 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 93,86 kN
C0 - Static load rating 60,5 kN
Operating temperature min. -40 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 3,85 kg
Recommended tightening torque for set screw 27,1 N-m
