EXF204T20CCE - SNR

EXF204T20CCE

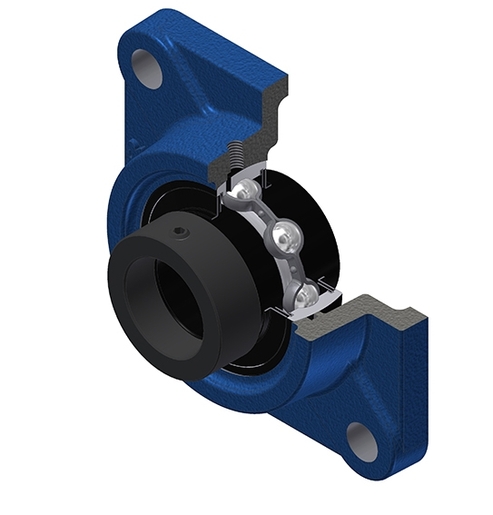

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX204G2T20 - SCCE204 - F204N
PLEASE LOGIN to add products to your basket
Contact us
Specs

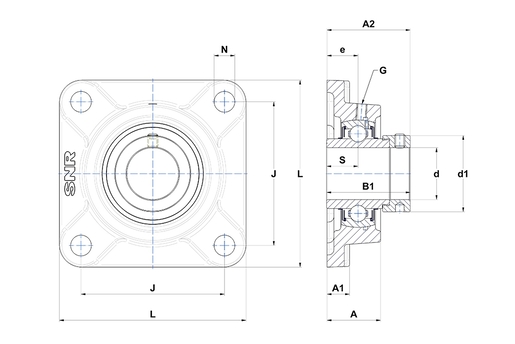

PRODUCT DIMENSIONS

Housing height (A) 25,5 mm
Housing foot height / flange height (A1) 11 mm
Total height (Housing + Insert) from mouting surface (A2) 41,5 mm
Width of IR (B) 34 mm
Overall width IR incl. eccent. locking collar/adapt. sleeve(B1) 43,5 mm
Shaft dia (d) 20 mm
Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) 32,4 mm
Outer dia of cover (Dz) 54 mm
Distance mounting surface - bearing center (e) 15 mm
Grease fitting (G) M6x1
Mounting hole distance (J) 64 mm
Housing width / dia (L) 86 mm
Mounting hole dimension (N) 12 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 17 mm
width over covers 45,8 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 12,8 kN
Static load rating (C0) 6,65 kN
Operating temperature min. -20 °C
Operating temperature max. 200 °C

OTHER FEATURES

Mass 0,669 kg
Recommended tightening torque for set screw [Nm] 5,5 N-m
