EXF205COE - SNR

EXF205COE

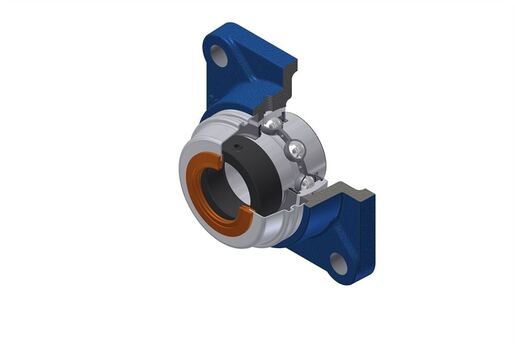

Grey cast housing, radial insert ball bearing with eccentric locking collar, seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX205G2 - SCOE205-25 - F205N
PLEASE LOGIN to add products to your basket
Contact us
Specs

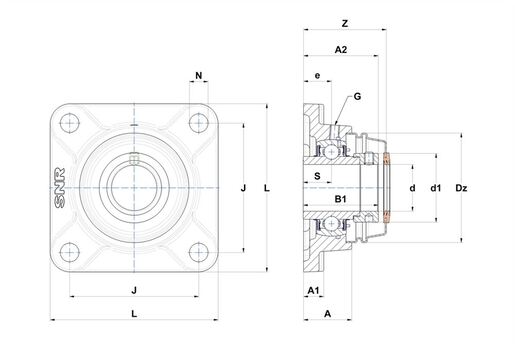

PRODUCT DEFINITION

A - Housing height 27 mm
A1 - Housing foot height / flange height 13 mm
A2 - Total height from mounting surface 42,9 mm
B - Width of Inner Ring 34,8 mm
B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) 44,3 mm
d - Shaft diameter 25 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve 37,4 mm
Dz - Outer diameter of cover 60 mm
e - Distance mounting surface to bearing center 16 mm
G - Grease fitting M6x1
J - Mounting holes distance 70 mm
L - Housing width / diameter 95 mm
N - Mounting hole dimension 12 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 17,4 mm
Z - Width over covers 47,8 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 14 kN
C0 - Static load rating 7,88 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 0,872 kg
Recommended tightening torque for set screw 5,5 N-m
