EXFE201-08 - SNR

EXFE201-08

Grey cast housing, radial insert ball bearing with eccentric locking collar, seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX201-08G2 - FE204
PLEASE LOGIN to add products to your basket
Contact us
Specs

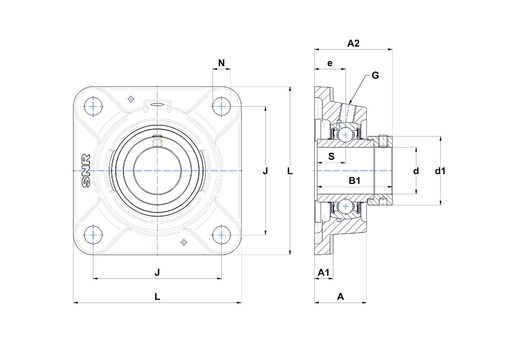

PRODUCT DEFINITION

A - Housing height 29,5 mm
A1 - Housing foot height / flange height 10 mm
A2 - Total height from mounting surface 45,5 mm
B - Width of Inner Ring 34 mm
B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) 43,5 mm
d - Shaft diameter 12,7 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve 32,4 mm
e - Distance mounting surface to bearing center 19 mm
G - Grease fitting R1/8"
J - Mounting holes distance 63,5 mm
L - Housing width / diameter 86 mm
N - Mounting hole dimension 11,5 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 17 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 12,8 kN
C0 - Static load rating 6,65 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 0,79 kg
Recommended tightening torque for set screw 3,7 N-m
