EXFE205L4 - SNR

EXFE205L4

Grey cast housing, radial insert ball bearing with eccentric locking collar, L4 sealing system

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX205G2L4 - FE205
PLEASE LOGIN to add products to your basket
Contact us
Specs

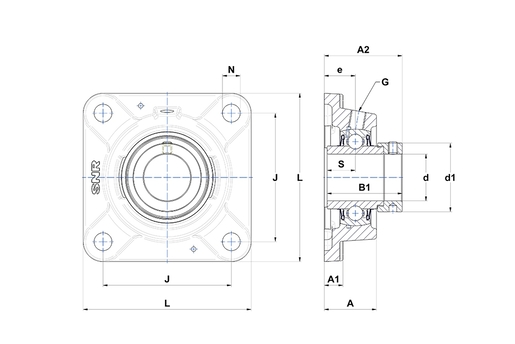

PRODUCT DEFINITION

A - Housing height 30 mm
A1 - Housing foot height / flange height 11 mm
A2 - Total height from mounting surface 45,9 mm
B - Width of Inner Ring 34,8 mm
B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) 44,3 mm
d - Shaft diameter 25 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve 37,4 mm
e - Distance mounting surface to bearing center 19 mm
G - Grease fitting R1/8"
J - Mounting holes distance 70 mm
L - Housing width / diameter 95 mm
N - Mounting hole dimension 11,5 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 17,4 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 14 kN
C0 - Static load rating 7,88 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 0,85 kg
Recommended tightening torque for set screw 5,5 N-m
