EXFE205N - SNR

EXFE205N

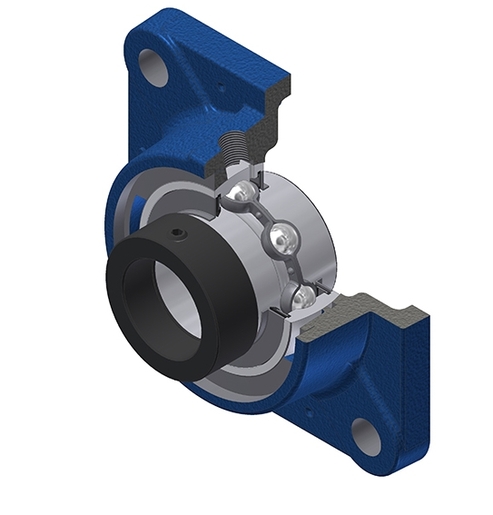

Grey cast housing, radial insert ball bearing with eccentric locking collar, seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX205G2 - FE205N
PLEASE LOGIN to add products to your basket
Contact us

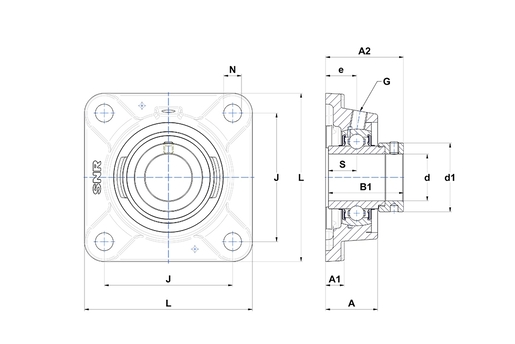

PRODUCT DEFINITION
BrandSNR
A - Housing height30 mm
A1 - Housing foot height / flange height11 mm
A2 - Total height from mounting surface45,9 mm
B - Width of Inner Ring34,8 mm
B1 - Overall width Inner Ring44,3 mm
d - Shaft diameter25 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve37,4 mm
e - Distance mounting surface to bearing center19 mm
G - Grease fittingR1/8"
J - Mounting holes distance70 mm
L - Housing width / diameter95 mm
N - Mounting hole dimension11,5 mm
S - Distance front side/bearing centre17,4 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating14 kN
C0 - Static load rating7,88 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass0,84 kg
Recommended tightening torque for set screw5,5 N-m
