EXFE205NT20 - SNR

EXFE205NT20

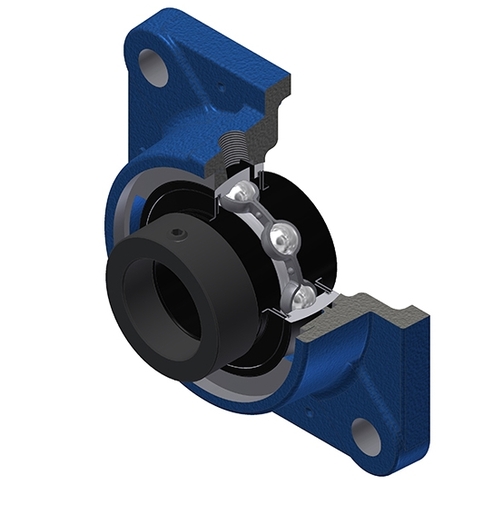

Grey cast housing, radial insert ball bearing with eccentric locking collar, labyrinth seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX205G2T20 - FE205N
PLEASE LOGIN to add products to your basket
Contact us
Specs

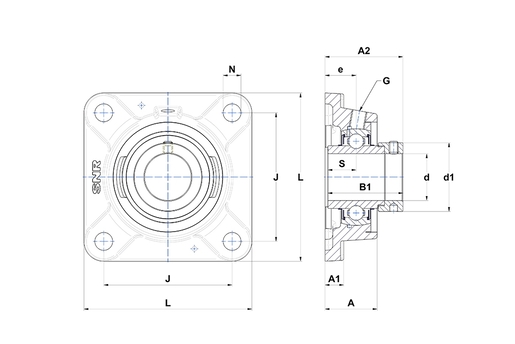

PRODUCT DEFINITION

A - Housing height 30 mm
A1 - Housing foot height / flange height 11 mm
A2 - Total height from mounting surface 45,9 mm
B - Width of Inner Ring 34,8 mm
B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) 44,3 mm
d - Shaft diameter 25 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve 37,4 mm
e - Distance mounting surface to bearing center 19 mm
G - Grease fitting R1/8"
J - Mounting holes distance 70 mm
L - Housing width / diameter 95 mm
N - Mounting hole dimension 11,5 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 17,4 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 14 kN
C0 - Static load rating 7,88 kN
Operating temperature min. -20 °C
Operating temperature max. 200 °C

OTHER FEATURES

Mass 0,84 kg
Recommended tightening torque for set screw 5,5 N-m
