EXFE205T20 - SNR

EXFE205T20

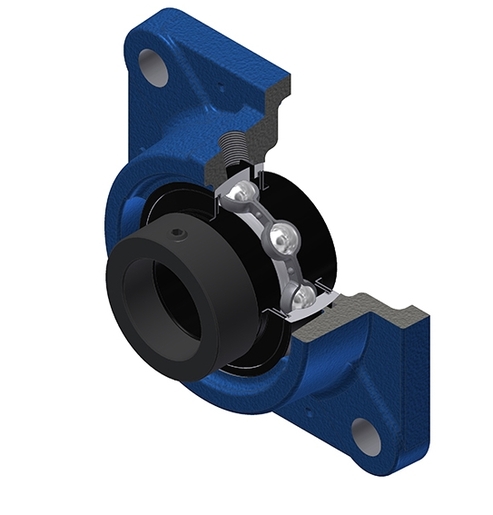

Grey cast housing, radial insert ball bearing with eccentric locking collar, labyrinth seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

3D file

Technical datasheet

KitThis kit contains the following reference(s) - EX205G2T20 - FE205
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR
A - Housing height30 mm
A1 - Housing foot height / flange height11 mm
A2 - Total height from mounting surface45,9 mm
B - Width of Inner Ring34,8 mm
B1 - Overall width Inner Ring44,3 mm
d - Shaft diameter25 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve37,4 mm
e - Distance mounting surface to bearing center19 mm
G - Grease fittingR1/8"
J - Mounting holes distance70 mm
L - Housing width / diameter95 mm
N - Mounting hole dimension11,5 mm
S - Distance front side/bearing centre17,4 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating14 kN
C0 - Static load rating7,88 kN
Operating temperature min.-20 °C
Operating temperature max.200 °C
OTHER FEATURES
Mass0,85 kg
Recommended tightening torque for set screw5,5 N-m
