EXFE208-24L4 - SNR

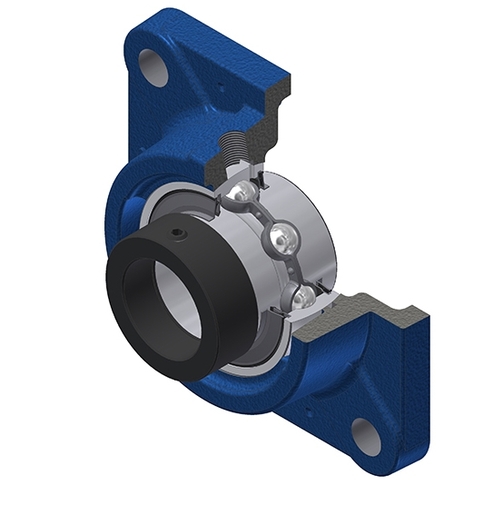

Grey cast housing, radial insert ball bearing with eccentric locking collar, L4 sealing system

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.


Technical datasheet

KitThis kit contains the following reference(s) - EX208-24G2L4 - FE208
PLEASE LOGIN to add products to your basket
Contact us

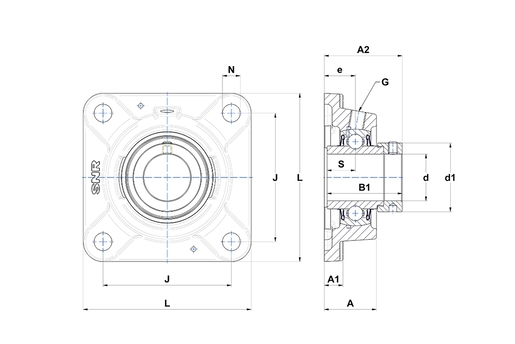

Housing height (A) 39,5 mm
Housing foot height / flange height (A1) 13 mm
Total height (Housing + Insert) from mouting surface (A2) 58,9 mm
Width of IR (B) 42,8 mm
Overall width IR incl. eccent. locking collar/adapt. sleeve(B1) 56,3 mm
Shaft dia (d) 38,1 mm
Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) 58 mm
Distance mounting surface - bearing center (e) 24 mm
Grease fitting (G) R1/8"
Mounting hole distance (J) 101,5 mm
Housing width / dia (L) 130 mm
Mounting hole dimension (N) 14 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 21,4 mm
Brand SNR
Product classification image


Dynamic load rating (C) 29,6 kN
Static load rating (C0) 18,2 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C


Mass 2,24 kg
Recommended tightening torque for set screw [Nm] 8 N-m
