EXFE215-48T20 - SNR

EXFE215-48T20

Grey cast housing, radial insert ball bearing with eccentric locking collar, labyrinth seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX215-48G2T20 - FE215
PLEASE LOGIN to add products to your basket
Contact us
Specs

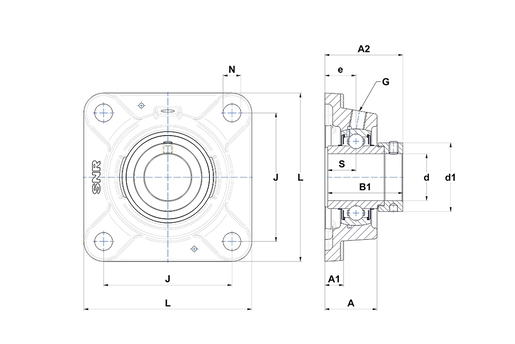

PRODUCT DEFINITION

A - Housing height 59 mm
A1 - Housing foot height / flange height 20 mm
A2 - Total height from mounting surface 96,1 mm
B - Width of Inner Ring 74,6 mm
B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) 92,1 mm
d - Shaft diameter 76,2 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve 102 mm
e - Distance mounting surface to bearing center 41,3 mm
G - Grease fitting R1/8"
J - Mounting holes distance 153 mm
L - Housing width / diameter 197 mm
N - Mounting hole dimension 23 mm
S - Dist. cent. of raceway to face IR on side opp. lock. device 37,3 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load rating 66 kN
C0 - Static load rating 49,5 kN
Operating temperature min. -20 °C
Operating temperature max. 200 °C

OTHER FEATURES

Mass 6,79 kg
Recommended tightening torque for set screw 16,8 N-m
