EXP201L3COE - SNR

EXP201L3COE

Grey cast housing, radial insert ball bearing with eccentric locking collar, triple lip seal.

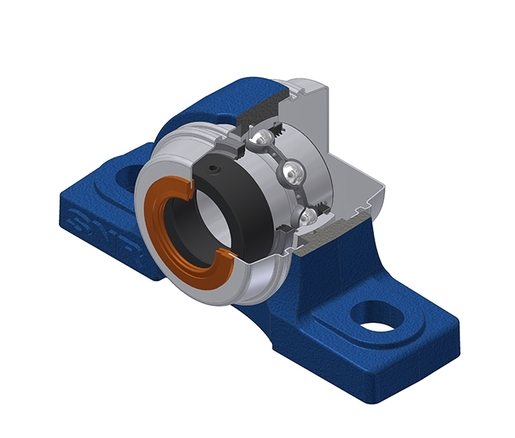

In the figure, bearing units are presented with one open and one closed cover. The product you have chosen is equipped with two open covers.

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX201G2L3 - SCOE204-12 - P204N
PLEASE LOGIN to add products to your basket
Contact us

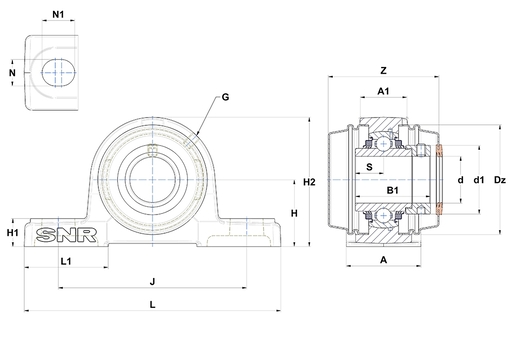

PRODUCT DEFINITION
BrandSNR
A - Housing width38 mm
A1 - Housing top width22 mm
B - Width of Inner Ring34 mm
d - Shaft diameter12 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve32,4 mm
Dz - Outer diameter of cover54 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.33,3 mm
H1 - Housing foot height15 mm
H2 - Housing height65 mm
J - Mounting holes distance95 mm
L - Housing length127 mm
L1 - Housing foot length42 mm
N - Mounting hole dimension13 mm
N1 - Mounting hole length19 mm
S - Distance front side/bearing centre17 mm
Z - Width over covers63,4 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating12,8 kN
C0 - Static load rating6,65 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass0,866 kg
Recommended tightening torque for set screw5,5 N-m
