EXPA210L4COE - SNR

EXPA210L4COE

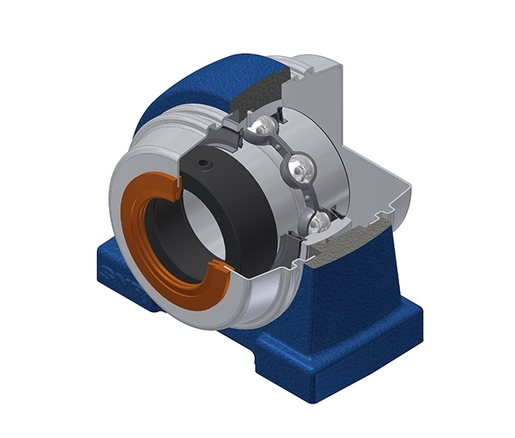

Grey cast housing, radial insert ball bearing with eccentric locking collar, L4 sealing system

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX210G2L4 - PA210N - SCOE210-50
PLEASE LOGIN to add products to your basket
Contact us
Specs

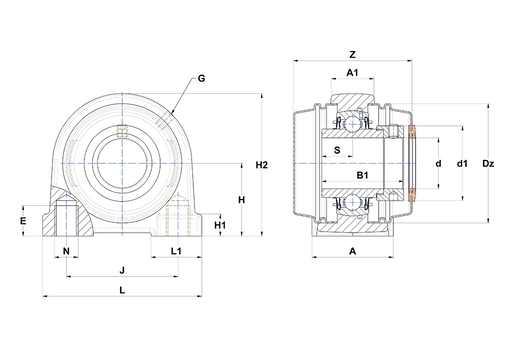

PRODUCT DIMENSIONS

Housing width (A) 60 mm
Housing top width (A1) 32 mm
Width of IR (B) 49,2 mm
Shaft dia (d) 50 mm
Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) 67,2 mm
Outer dia of cover (Dz) 100 mm
Mounting hole thread depth (E) 25 mm
Grease fitting (G) M6x1
Distance mounting base to centerline spheric. seating diam. (H) 57,2 mm
Housing foot height (H1) 14 mm
Housing height (H2) 116 mm
Mounting hole distance (J) 94 mm
Housing length (L) 130 mm
Housing foot length (L1) 35 mm
Mounting hole dimension (N) M16
Dist. cent. of raceway to face IR on side opp. lock. device (S) 24,6 mm
width over covers 57,5 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 35,1 kN
Static load rating (C0) 23,2 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 2,832 kg
Recommended tightening torque for set screw [Nm] 11,5 N-m
