EXPLE204-12T04 - SNR

EXPLE204-12T04

Grey cast housing, radial insert ball bearing with eccentric locking collar, seal with slinger, for low-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX204-12G2T04 - PLE204
PLEASE LOGIN to add products to your basket
Contact us

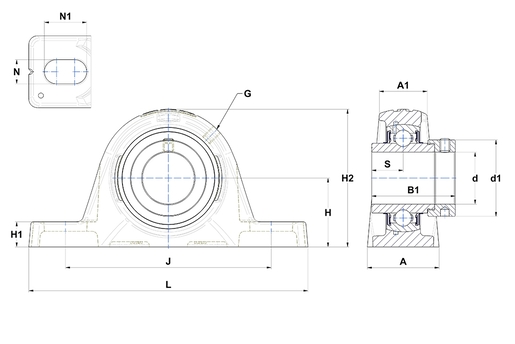

PRODUCT DEFINITION
BrandSNR
A - Housing width32 mm
A1 - Housing top width22,5 mm
B - Width of Inner Ring34 mm
d - Shaft diameter19,05 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve32,4 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.31,8 mm
H1 - Housing foot height12,5 mm
H2 - Housing height63,7 mm
J - Mounting holes distance94,5 mm
L - Housing length126,5 mm
N - Mounting hole dimension11 mm
N1 - Mounting hole length17 mm
S - Distance front side/bearing centre17 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating12,8 kN
C0 - Static load rating6,65 kN
Operating temperature min.-40 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass0,72 kg
Recommended tightening torque for set screw3,7 N-m
