EXPLE204N - SNR

EXPLE204N

Grey cast housing, radial insert ball bearing with eccentric locking collar, seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX204G2 - PLE204N
PLEASE LOGIN to add products to your basket
Contact us

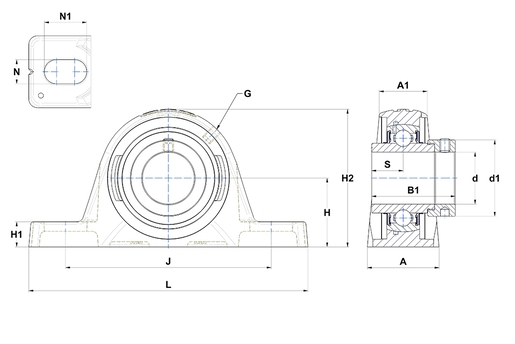

PRODUCT DEFINITION
BrandSNR
A - Housing width32 mm
A1 - Housing top width22,5 mm
B - Width of Inner Ring34 mm
d - Shaft diameter20 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve32,4 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.31,8 mm
H1 - Housing foot height12,5 mm
H2 - Housing height63,7 mm
J - Mounting holes distance94,5 mm
L - Housing length126,5 mm
N - Mounting hole dimension11 mm
N1 - Mounting hole length17 mm
S - Distance front side/bearing centre17 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating12,8 kN
C0 - Static load rating6,65 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass0,62 kg
Recommended tightening torque for set screw5,5 N-m
