GS81104 - NTN

GS81104

Needle roller bearing, thrust needle roller bearing, outer ring

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

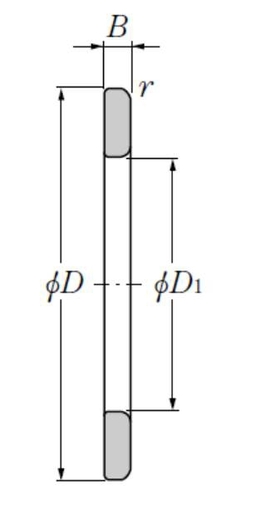

PRODUCT DEFINITION

D - Outside diameter of support washer OR - GS 35 mm
D1 - Bore diameter bearing washer OR - GS 21 mm
B - Ring thickness 2,75 mm
rs - Min fillet radius 0,3 mm
Bearing ring (outer ring) GS mass 0,014 kg
Brand NTN

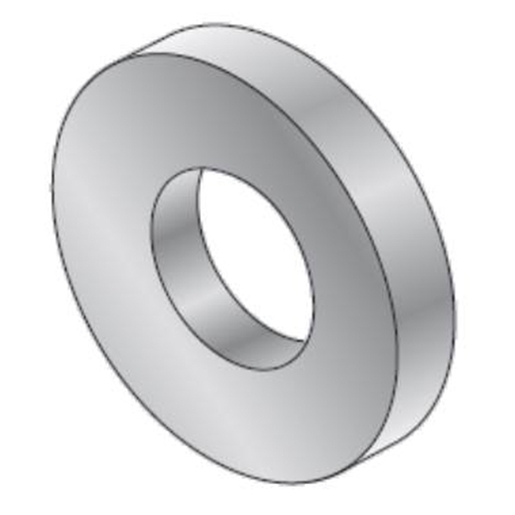

Product classification image

PRODUCT PERFORMANCE

Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C
