GS81109 - NTN

GS81109

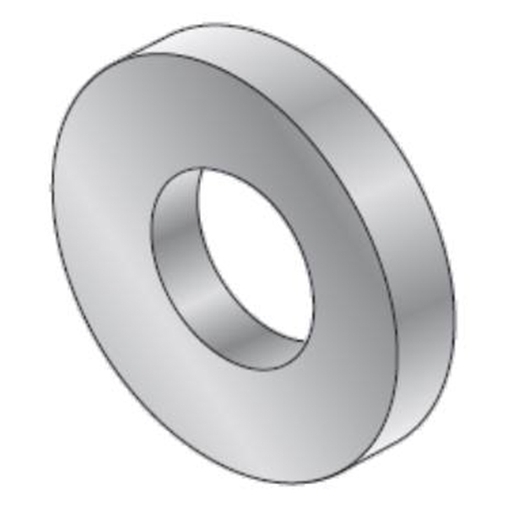

Needle roller bearing, thrust needle roller bearing, outer ring

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

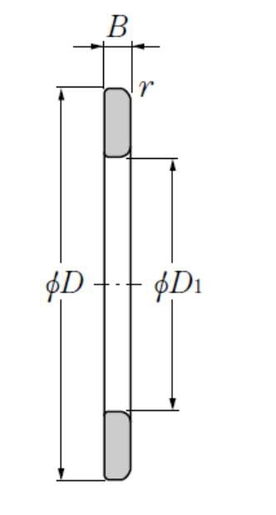

PRODUCT DEFINITION

D - Outside diameter of support washer OR - GS 65 mm
D1 - Bore diameter bearing washer OR - GS 47 mm
B - Ring thickness 4 mm
rs - Min fillet radius 0,6 mm
Bearing ring (outer ring) GS mass 0,055 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C
