Adapter sleeve

H2336 - SNR

H2336

This kit contains the following reference(s)

Documentation

Product information

PRODUCT DEFINITION
BrandSNR

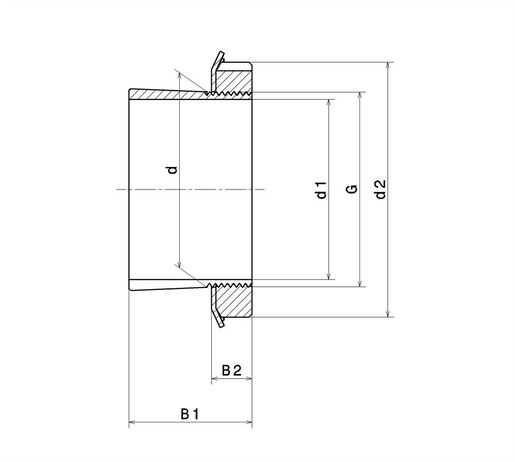

d1 - Sleeve bore diameter160 mm
d - Internal diameter180 mm
d2 - Outer diameter of locknut230 mm
B1 - Sleeve length161 mm
B2 - Distance between the bearing face and nut rear face30 mm
G - Thread designationM180X3
Mass11,3 kg
undefined
TECHNICAL CHARACTERISTICS
Associated bearing22336, 23236
BoreConique 1:12
