HMK1014LL/3AS - NTN

HMK1014LL/3AS

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DEFINITION

Fw - Under rollers diameter 10 mm
D - External diameter 17 mm
C2 - Width of the drawn cup LL 14 mm

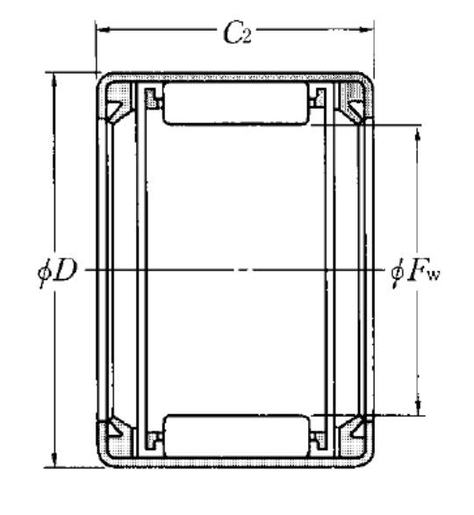

Product classification image

TECHNICAL CHARACTERISTICS

Lubrication hole on outer ring No
Inner ring reference IR7X10X16
Mass 0,009 kg
Brand NTN

PRODUCT PERFORMANCE

Cr - Dynamic load rating 4,25 kN
C0r - Static load rating 3,45 kN
Nlim - Grease lubrication limit speed 10000 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 100 °C
