HMK1513L/3AS - NTN

HMK1513L/3AS

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

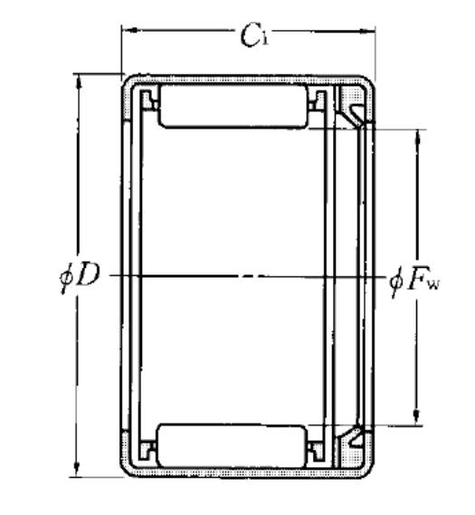

PRODUCT DEFINITION

Fw - Under rollers diameter 15 mm
D - External diameter 22 mm
C1 - Width of the drawn cup L 13 mm
Product classification image

TECHNICAL CHARACTERISTICS

Lubrication hole on outer ring No
Inner ring reference IR12X15X16
Mass 0,014 kg
Brand NTN

PRODUCT PERFORMANCE

Cr - Dynamic load rating 6,1 kN
C0r - Static load rating 6 kN
Nlim - Grease lubrication limit speed 10000 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 100 °C
