HMK1516LL/3AS - NTN

HMK1516LL/3AS

Downloads

CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

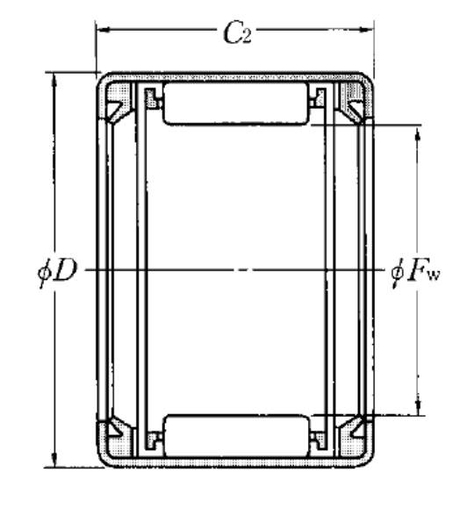

PRODUCT DIMENSIONS

Under rollers diameter (Fw) 15 mm
External diameter D 22 mm
C1 13 mm
Lubrication hole on outer ring No
Inner ring reference IR12X15X16.5
Mass 0,015 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (Cr) 6,1 kN
Static load rating (C0r) 6 kN
Nlim (grease) 10000 tr/min
Min operating temperature, Tmin -20 °C
Max operating temperature, Tmax 100 °C
Characteristic cage frequency, FTF 0,429 Hz
Characteristic rolling element frequency, BSF 6,857 Hz
Characteristic outer ring frequency, BPF0 5,571 Hz
Characteristic inner ring frequency, BPFI 7,429 Hz
