HMK2025C - NTN

HMK2025C

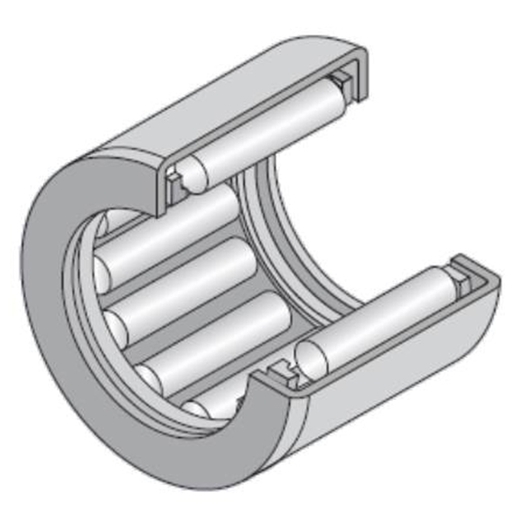

Needle roller bearing, drawn cup, open end, heavy load

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

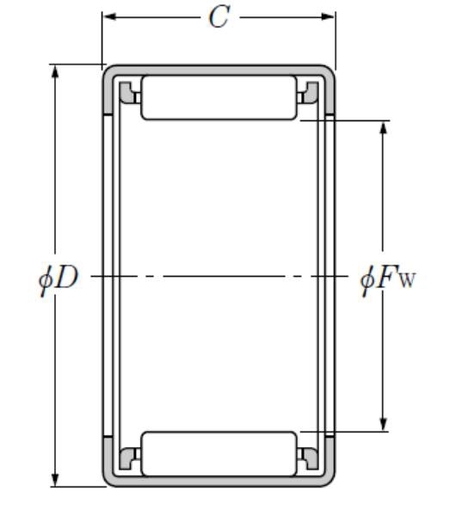

PRODUCT DEFINITION

Fw - Under rollers diameter 20 mm
D - External diameter 27 mm
C - Width of bearing, drawn cup or outer ring 25 mm
Product classification image

TECHNICAL CHARACTERISTICS

Lubrication hole on outer ring No
Inner ring reference IR15X20X26
Mass 0,034 kg
Brand NTN

PRODUCT PERFORMANCE

Cr - Dynamic load rating 22 kN
C0r - Static load rating 34 kN
Nlim - Grease lubrication limit speed 8000 tr/min
Nlim - Oil lubrication limit speed 12000 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C
