HMK2525 - NTN

HMK2525

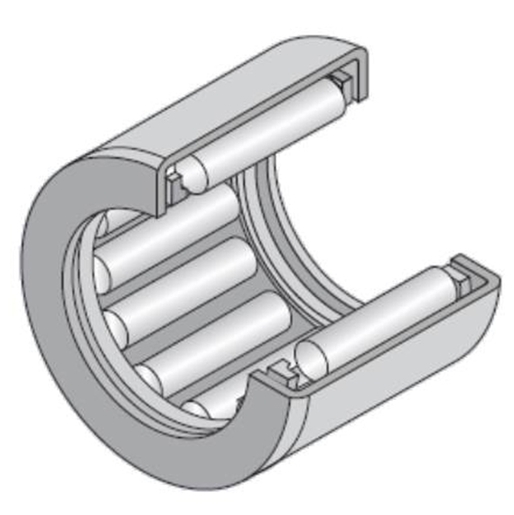

Needle roller bearing, drawn cup, open end, heavy load

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

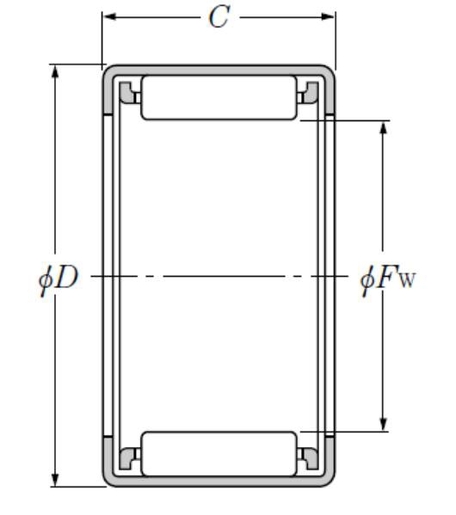

PRODUCT DEFINITION

Fw - Under rollers diameter 25 mm
D - External diameter 33 mm
C - Width of bearing, drawn cup or outer ring 25 mm
Product classification image

TECHNICAL CHARACTERISTICS

Lubrication hole on outer ring No
Inner ring reference IR20X25X26.5
Mass 0,048 kg
Brand NTN

PRODUCT PERFORMANCE

Cr - Dynamic load rating 26,7 kN
C0r - Static load rating 41 kN
Nlim - Grease lubrication limit speed 6500 tr/min
Nlim - Oil lubrication limit speed 9500 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C
