Specs

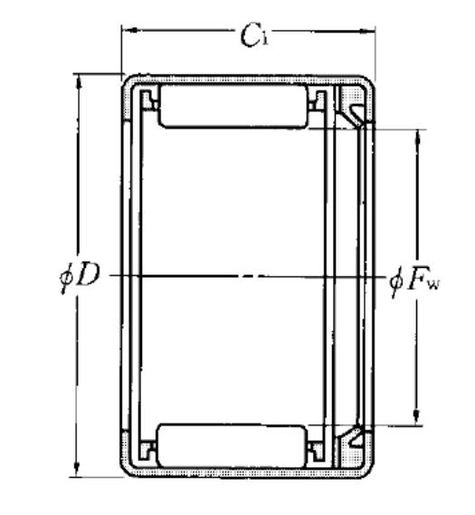

PRODUCT DIMENSIONS | |
|---|---|
| Under rollers diameter (Fw) | 35 mm |
| External diameter D | 45 mm |
| Width of bearing, drawn cup or outer ring (C) | 18 mm |
| Lubrication hole on outer ring | No |
| Inner ring reference | No |
| Mass | 0,053 kg |
| Brand | NTN |
PRODUCT PERFORMANCE | |
|---|---|
| Dynamic load rating (Cr) | 20,2 kN |
| Static load rating (C0r) | 26,2 kN |
| Nlim (grease) | 4600 tr/min |
| Min operating temperature, Tmin | -20 °C |
| Max operating temperature, Tmax | 100 °C |
| Characteristic cage frequency, FTF | 0,449 Hz |
| Characteristic rolling element frequency, BSF | 9,647 Hz |
| Characteristic outer ring frequency, BPF0 | 8,077 Hz |
| Characteristic inner ring frequency, BPFI | 9,923 Hz |
