K24X28X10 - NTN

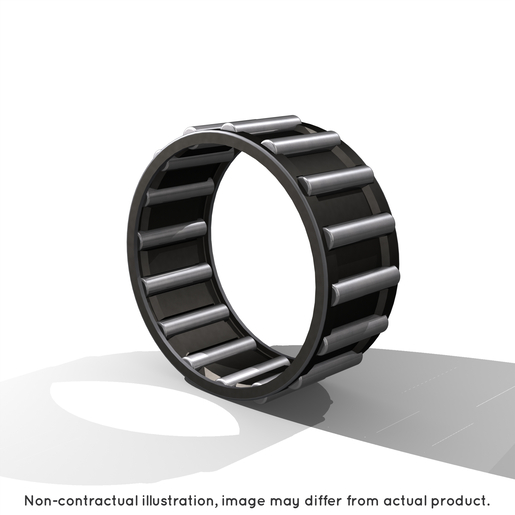

K24X28X10

Needle roller bearing, cage assembly, steel cage

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DEFINITION

Fw - Under rollers diameter 24 mm
Ew - Upper rollers diameter 28 mm
Bc - Cage Width 10 mm
Product classification image

TECHNICAL CHARACTERISTICS

Mass 0,008 kg
Brand NTN

PRODUCT PERFORMANCE

Cr - Dynamic load rating 9 kN
C0r - Static load rating 13,2 kN
Nlim - Grease lubrication limit speed 11000 tr/min
Nlim - Oil lubrication limit speed 17000 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C

ABUTMENT

b - Raceway width 10 mm
