K25X30X26ZW - NTN

K25X30X26ZW

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

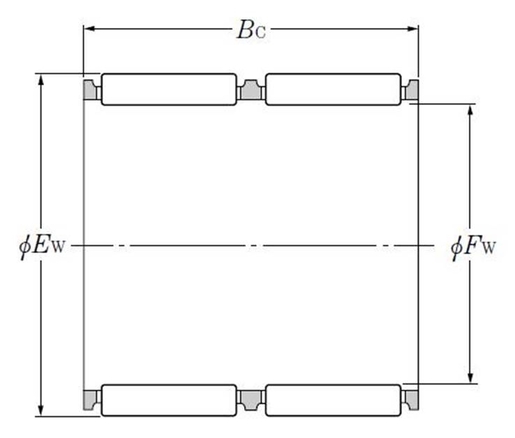

PRODUCT DEFINITION

Fw - Under rollers diameter 25 mm
Ew - Upper rollers diameter 30 mm
Bc - Cage Width 26 mm
Product classification image

TECHNICAL CHARACTERISTICS

Mass 0,027 kg
Brand NTN

PRODUCT PERFORMANCE

Cr - Dynamic load rating 36,5 kN
C0r - Static load rating 71,5 kN
Nlim - Grease lubrication limit speed 11000 tr/min
Nlim - Oil lubrication limit speed 16000 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C

ABUTMENT

b - Raceway width 26 mm
