K28X33X26ZW - NTN

K28X33X26ZW
K28X33X26ZW
K28X33X26ZW

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us

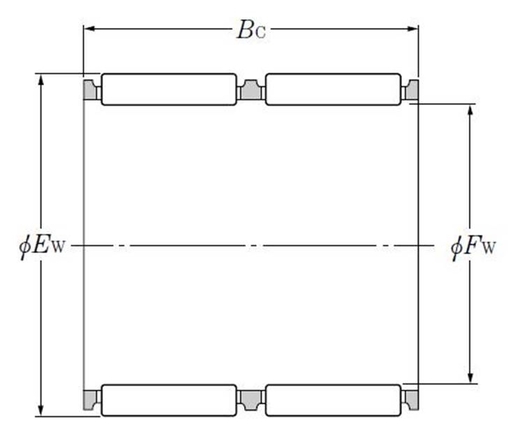

PRODUCT DEFINITION
BrandNTN
Fw - Under rollers diameter28 mm
Ew - Upper rollers diameter33 mm
Bc - Cage Width26 mm
Mass0,033 kg
Product classification image
PRODUCT PERFORMANCE
Cr - Dynamic load rating23,9 kN
C0r - Static load rating42 kN
Nlim - Grease lubrication limit speed9500 tr/min
Nlim - Oil lubrication limit speed14000 tr/min
Tmin - Min operating temperature-20 °C
Tmax - Max operating temperature120 °C
ABUTMENT
b - Raceway width26 mm
